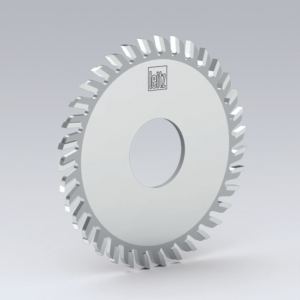

Grooving on CNC machining centers
Application:
For grooving.
Machine:
Aggregates on CNC machining centers.
Workpiece Material:
Laminated and raw panels (e.g. particleboard, MDF, plywood, melamine and HPL).
Technical Information:
Tooth configuration WZ/WZ/FZ for chip-free grooves. Mounted on aggregate flanges.
166000 100 mm D 3.5 mm Kerf 2.5 mm Plate 30 mm Bore 35 Teeth WZ/WZ/FZ Grind 15° Hook Weeke
166001 100 mm D 5 mm Kerf 3.5 mm Plate 30 mm Bore 35 Teeth WZ/WZ/FZ Grind 15° Hook Weeke
166002 120 mm D 3.5 mm Kerf 2.5 mm Plate 20 mm Bore 3 Type 35 Teeth WZ/WZ/FZ Grind 15° Hook SCM/ Morbidelli
166003 120 mm D 5 mm Kerf 3.5 mm Plate 20 mm Bore 3 Type 35 Teeth WZ/WZ/FZ Grind 15° Hook SCM/ Morbidelli
166004 120 mm D 3.5 mm Kerf 2.5 mm Plate 35 mm Bore 2 Type 35 Teeth WZ/WZ/FZ Grind 15° Hook Biesse
166006 125 mm D 3.5 mm Kerf 2.5 mm Plate 30 mm Bore 1, 2 Type 35 Teeth WZ/WZ/FZ Grind 15° Hook
166006 125 mm D 3.5 mm Kerf 2.5 mm Plate 30 mm Bore 1, 2 Type 35 Teeth WZ/WZ/FZ Grind 15° Hook Homag/ Weeke
166007 125 mm D 5 mm Kerf 3.5 mm Plate 30 mm Bore 1, 2 Type 35 Teeth WZ/WZ/FZ Grind 15° Hook Homag/ Weeke
166008 100 mm D 4 mm Kerf 2.8 mm Plate 30 mm Bore 35 Teeth WZ/WZ/FZ Grind 15° Hook Weeke
166009 120 mm D 4 mm Kerf 2.8 mm Plate 20 mm Bore 3 Type 35 Teeth WZ/WZ/FZ Grind 15° Hook SCM/ Morbidelli
166010 120 mm D 4 mm Kerf 2.8 mm Plate 35 mm Bore 2 Type 35 Teeth WZ/WZ/FZ Grind 15° Hook Biesse
166011 125 mm D 4 mm Kerf 2.8 mm Plate 30 mm Bore 1, 2 Type 35 Teeth WZ/WZ/FZ Grind 15° Hook Homag/ Weeke
