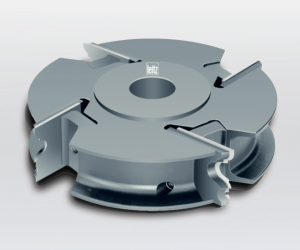

VariForm Cutterheads
Application:
For cutting profiles. Different profiles with a maximum of 20 mm profile depth can be mounted.
Machine:
Moulders, double end tenoners, edgebanding machines, etc.
Workpiece Material:
Softwood and hardwood (HW-30F), panel materials or glued wood (HW-10F).
Technical Information:
Multi-purpose cutterhead with tungsten carbide special profile knives and backing plates. Can be resharpened three to four times.
117506 Allen Key SW 5, L100 mm D
130045295 102 mm D 40 mm SB SH=3/4" Bore 20 mm PT max 2 FLUTES Dedicated Type
134214 165 mm D 60 mm SB 30 mm Bore 40 mm Bore max 20 mm PT max 2 FLUTES 10,000 RPM max
135203 180 mm D 40 mm SB 35 DKN mm Bore 35 mm Bore max 20 mm PT max 4 FLUTES 9,000 RPM max
135204 180 mm D 50 mm SB 35 DKN mm Bore 35 mm Bore max 20 mm PT max 4 FLUTES 9,000 RPM max
135206 180 mm D 40 mm SB 30 mm Bore 50 mm Bore max 20 mm PT max 4 FLUTES 9,000 RPM max
135208 180 mm D 60 mm SB 30 mm Bore 50 mm Bore max 20 mm PT max 4 FLUTES 9,000 RPM max
135212 165 mm D 40 mm SB 30 mm Bore 40 mm Bore max 20 mm PT max 2 FLUTES 10,000 RPM max
135213 165 mm D 50 mm SB 30 mm Bore 40 mm Bore max 20 mm PT max 2 FLUTES 10,000 RPM max
135215 135 mm D 30 mm SB 1-1/4" Bore 1-14" Bore max 20 mm PT max 2 FLUTES Dedicated Type
135216 200 mm D 30 mm SB 1-1/4" Bore 50 mm Bore max 20 mm PT max 3 FLUTES Dedicated Type
135217 150 mm D 40 mm SB 1-1/4" Bore 1-1/4" Bore max 20 mm PT max 2 FLUTES Universal Type
135218 200 mm D 40 mm SB 1-1/4" Bore 50 mm Bore max 20 mm PT max 3 FLUTES Universal Type
135400 110 mm D 40/45 mm SB 25 x 60 mm SHANK 15 mm PT max RH Rot 12,000 RPMs max
135401 110 mm D 50/60 mm SB 25 x 60 mm SHANK 15 mm PT max RH Rot 12,000 RPMs max
6044 Allen Screw with ISK 5 M10 x 12 mm D
9756 Clamping Wedge 36 x 13, 21 x 26 mm D 40/45 mm for SB
9757 Clamping Wedge 56 x 13, 21 x 26 mm D 60 mm for SB
9760 Clamping Wedge 44 x 13, 21 x 24, 25 mm D 50/60 mm for SB
